Variable jitter¶
The RV dispersion is typically larger in more active stars.
To account for this, Díaz et al. (2016) proposed a model where the 'jitter' term depends on the value of the \(\log R'_{HK}\) indicator. Using the same notation as in the models page, this changes the default model in kima from
\[
v_i \sim \mathcal{N} \left( v_{sys} \,,\: j^2+\sigma_i^2 \right)
\]
to something like
\[
v_i \sim \mathcal{N} \left( v_{sys} \,,\: j^2 + (\alpha_j \cdot {\rm RHK})^2 + \sigma_i^2 \right)
\]
where \({\rm RHK}\) represents the values of \(\log R'_{HK}\) normalized to the range \([0-1]\).
Note
The $\log R'_{HK}$ values are normalized to $[0-1]$ by subtracting the minimun value and dividing by the peak-to-peak. This means that the additional white noise at the minimum $\log R'_{HK}$ value is zero.
The parameter \(\alpha_j\) is unknown and represents the slope of the dependence
of the jitter with \(\log R'_{HK}\). We may assume that \(\alpha_j>0\) always. This
model is implemented in RVmodel with the
jitter_propto_indicator setting.
Let's see an example.
Simulating a dataset¶
First, we get some standard imports out of the way
We'll generate a simple RV dataset that contains only noise. At the same time, we also generate fake \(\log R'_{HK}\) values which first increase slightly and then decrease. This simulates the variation that could be observed due to a stellar magnetic cycle.
def create_data(multiple_instruments=False):
np.random.seed(43) #(1)!
t = np.sort(np.random.uniform(0, 100, 87)) #(2)!
#(3)!
rv = np.random.normal(loc=-3, scale=0.01, size=t.size)
err_rv = np.random.uniform(0.1, 0.4, t.size)
#(4)!
rhk = -4.9 + keplerian(t, 300, 0.1, 0.5, 0.0, 0, 60)
rhk = rhk + np.random.normal(loc=0.0, scale=0.003, size=t.size)
err_rhk = np.random.uniform(0.004, 0.006, t.size)
# normalize the log R'HK to range [0, 1]
norm_rhk = (rhk - rhk.min()) / np.ptp(rhk)
mask = None
if multiple_instruments: #(5)!
mask = np.arange(t.size) > 2 * t.size // 3
rv[mask] = rv[mask] + 2.5
# !!! add jitter proportional to (normalized) log R'HK !!!
alpha = 2.1
rv = rv + np.random.normal(loc=0, scale=alpha * norm_rhk, size=t.size)
# save the data in text files
kw = dict(fmt='%10.5f', header='t rv err_rv rhk err_rhk')
if multiple_instruments:
D1 = np.c_[t[~mask], rv[~mask], err_rv[~mask], rhk[~mask], err_rhk[~mask]]
D2 = np.c_[t[mask], rv[mask], err_rv[mask], rhk[mask], err_rhk[mask]]
np.savetxt('data1.txt', D1, **kw)
np.savetxt('data2.txt', D2, **kw)
else:
D = np.c_[t, rv, err_rv, rhk, err_rhk]
np.savetxt('data.txt', D, **kw)
return (t, rv, err_rv, rhk, err_rhk, mask)
- so you can reproduce the same dataset
- random times over a short timespan
- RVs with only white noise and associated uncertainties
- simulate \(\log R'_{HK}\) (using a Keplerian function just for convenience)
- to simulate multiple instruments, add an RV offset to some points
Let's call the function and visualize the data
def plot_data(t, rv, err_rv, rhk, err_rhk, mask):
fig, axs = plt.subplots(2, 1, constrained_layout=True)
if mask is None:
axs[0].errorbar(t, rv, err_rv, fmt='o', ms=3)
axs[1].errorbar(t, rhk, err_rhk, fmt='o', ms=3)
else:
axs[0].errorbar(t[~mask], rv[~mask], err_rv[~mask], fmt='o', ms=3)
axs[0].errorbar(t[mask], rv[mask], err_rv[mask], fmt='o', ms=3)
axs[1].errorbar(t[~mask], rhk[~mask], err_rhk[~mask], fmt='o', ms=3)
axs[1].errorbar(t[mask], rhk[mask], err_rhk[mask], fmt='o', ms=3)
axs[0].set(xlabel='Time [days]', ylabel='RV [m/s]')
axs[1].set(xlabel='Time [days]', ylabel="$\\log R'_{HK}$")
return fig

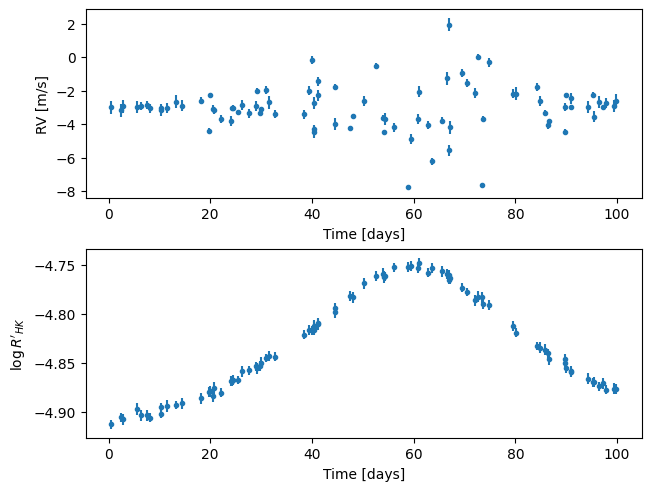

plot_data(t, rv, err_rv, rhk, err_rhk, mask)

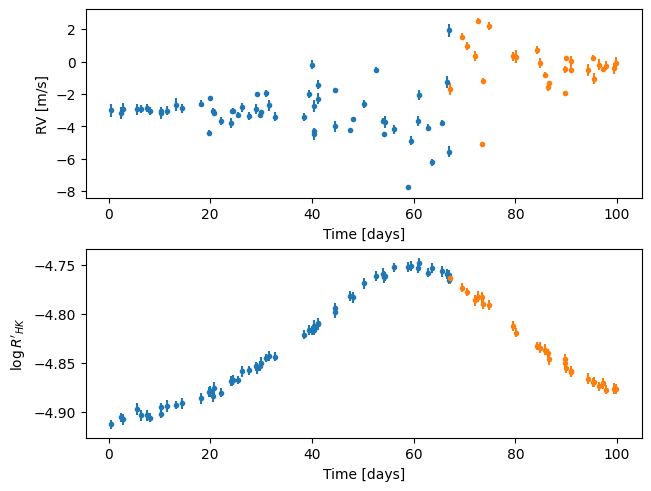

As we wanted, the variance of the RVs depends (linearly) on the \(\log R'_{HK}\). For the case of multiple instruments, the data looks very similar, except for the added RV offset:
Note
With this very simple simulation, we are trying to reproduce the observed data of active stars. For example, compare the above with Fig. 9 from Díaz et al.(2016), showing HARPS data for HD40307:
A model with simple jitter¶
Let's now fit these data, assuming the usual model with a non-variable jitter term
Run the model for a fewsteps
# Seeding random number generators. First seed = 1777457739.
# Generating 4 particles from the prior...done.
# Sampling...
[ ] 0% ] 0% ] 0% ] 0% ] 0% ] 0% ] 0% ] 0% ] 0% ] 0% ] 0%1%2%# ] 2%# ] 2%# ] 2%# ] 2%# ] 2%# ] 2%# ] 2%# ] 2%# ] 2%# ] 2%3%4%# ] 4%# ] 4%# ] 4%# ] 4%# ] 4%# ] 4%# ] 4%# ] 4%# ] 4%# ] 4%5%6%# ] 6%# ] 6%# ] 6%# ] 6%# ] 6%# ] 6%# ] 6%# ] 6%# ] 6%# ] 6%7%8%# ] 8%# ] 8%# ] 8%# ] 8%# ] 8%# ] 8%# ] 8%# ] 8%# ] 8%# ] 8%9%10%# ] 10%# ] 10%# ] 10%# ] 10%# ] 10%# ] 10%# ] 10%# ] 10%# ] 10%# ] 10%11%12%# ] 12%# ] 12%# ] 12%# ] 12%# ] 12%# ] 12%# ] 12%# ] 12%# ] 12%# ] 12%13%14%# ] 14%# ] 14%# ] 14%# ] 14%# ] 14%# ] 14%# ] 14%# ] 14%# ] 14%# ] 14%15%16%# ] 16%# ] 16%# ] 16%# ] 16%# ] 16%# ] 16%# ] 16%# ] 16%# ] 16%# ] 16%17%18%# ] 18%# ] 18%# ] 18%# ] 18%# ] 18%# ] 18%# ] 18%# ] 18%# ] 18%# ] 18%19%20%# ] 20%# ] 20%# ] 20%# ] 20%# ] 20%# ] 20%# ] 20%# ] 20%# ] 20%# ] 20%21%22%# ] 22%# ] 22%# ] 22%# ] 22%# ] 22%# ] 22%# ] 22%# ] 22%# ] 22%# ] 22%23%24%# ] 24%# ] 24%# ] 24%# ] 24%# ] 24%# ] 24%# ] 24%# ] 24%# ] 24%# ] 24%25%26%# ] 26%# ] 26%# ] 26%# ] 26%# ] 26%# ] 26%# ] 26%# ] 26%# ] 26%# ] 26%27%28%# ] 28%# ] 28%# ] 28%# ] 28%# ] 28%# ] 28%# ] 28%# ] 28%# ] 28%# ] 28%29%30%# ] 30%# ] 30%# ] 30%# ] 30%# ] 30%# ] 30%# ] 30%# ] 30%# ] 30%# ] 30%31%32%# ] 32%# ] 32%# ] 32%# ] 32%# ] 32%# ] 32%# ] 32%# ] 32%# ] 32%# ] 32%33%34%# ] 34%# ] 34%# ] 34%# ] 34%# ] 34%# ] 34%# ] 34%# ] 34%# ] 34%# ] 34%35%36%# ] 36%# ] 36%# ] 36%# ] 36%# ] 36%# ] 36%# ] 36%# ] 36%# ] 36%# ] 36%37%38%# ] 38%# ] 38%# ] 38%# ] 38%# ] 38%# ] 38%# ] 38%# ] 38%# ] 38%# ] 38%39%40%# ] 40%# ] 40%# ] 40%# ] 40%# ] 40%# ] 40%# ] 40%# ] 40%# ] 40%# ] 40%41%42%# ] 42%# ] 42%# ] 42%# ] 42%# ] 42%# ] 42%# ] 42%# ] 42%# ] 42%# ] 42%43%44%# ] 44%# ] 44%# ] 44%# ] 44%# ] 44%# ] 44%# ] 44%# ] 44%# ] 44%# ] 44%45%46%# ] 46%# ] 46%# ] 46%# ] 46%# ] 46%# ] 46%# ] 46%# ] 46%# ] 46%# ] 46%47%48%# ] 48%# ] 48%# ] 48%# ] 48%# ] 48%# ] 48%# ] 48%# ] 48%# ] 48%# ] 48%49%50%# ] 50%# ] 50%# ] 50%# ] 50%# ] 50%# ] 50%# ] 50%# ] 50%# ] 50%# ] 50%51%52%# ] 52%# ] 52%# ] 52%# ] 52%# ] 52%# ] 52%# ] 52%# ] 52%# ] 52%# ] 52%53%54%# ] 54%# ] 54%# ] 54%# ] 54%# ] 54%# ] 54%# ] 54%# ] 54%# ] 54%# ] 54%55%56%# ] 56%# ] 56%# ] 56%# ] 56%# ] 56%# ] 56%# ] 56%# ] 56%# ] 56%# ] 56%57%58%# ] 58%# ] 58%# ] 58%# ] 58%# ] 58%# ] 58%# ] 58%# ] 58%# ] 58%# ] 58%59%60%# ] 60%# ] 60%# ] 60%# ] 60%# ] 60%# ] 60%# ] 60%# ] 60%# ] 60%# ] 60%61%62%# ] 62%# ] 62%# ] 62%# ] 62%# ] 62%# ] 62%# ] 62%# ] 62%# ] 62%# ] 62%63%64%# ] 64%# ] 64%# ] 64%# ] 64%# ] 64%# ] 64%# ] 64%# ] 64%# ] 64%# ] 64%65%66%# ] 66%# ] 66%# ] 66%# ] 66%# ] 66%# ] 66%# ] 66%# ] 66%# ] 66%# ] 66%67%68%# ] 68%# ] 68%# ] 68%# ] 68%# ] 68%# ] 68%# ] 68%# ] 68%# ] 68%# ] 68%69%70%# ] 70%# ] 70%# ] 70%# ] 70%# ] 70%# ] 70%# ] 70%# ] 70%# ] 70%# ] 70%71%72%# ] 72%# ] 72%# ] 72%# ] 72%# ] 72%# ] 72%# ] 72%# ] 72%# ] 72%# ] 72%73%74%# ] 74%# ] 74%# ] 74%# ] 74%# ] 74%# ] 74%# ] 74%# ] 74%# ] 74%# ] 74%75%76%# ] 76%# ] 76%# ] 76%# ] 76%# ] 76%# ] 76%# ] 76%# ] 76%# ] 76%# ] 76%77%78%# ] 78%# ] 78%# ] 78%# ] 78%# ] 78%# ] 78%# ] 78%# ] 78%# ] 78%# ] 78%79%80%# ] 80%# ] 80%# ] 80%# ] 80%# ] 80%# ] 80%# ] 80%# ] 80%# ] 80%# ] 80%81%82%# ] 82%# ] 82%# ] 82%# ] 82%# ] 82%# ] 82%# ] 82%# ] 82%# ] 82%# ] 82%83%84%# ] 84%# ] 84%# ] 84%# ] 84%# ] 84%# ] 84%# ] 84%# ] 84%# ] 84%# ] 84%85%86%# ] 86%# ] 86%# ] 86%# ] 86%# ] 86%# ] 86%# ] 86%# ] 86%# ] 86%# ] 86%87%88%# ] 88%# ] 88%# ] 88%# ] 88%# ] 88%# ] 88%# ] 88%# ] 88%# ] 88%# ] 88%89%90%# ] 90%# ] 90%# ] 90%# ] 90%# ] 90%# ] 90%# ] 90%# ] 90%# ] 90%# ] 90%91%92%# ] 92%# ] 92%# ] 92%# ] 92%# ] 92%# ] 92%# ] 92%# ] 92%# ] 92%# ] 92%93%94%# ] 94%# ] 94%# ] 94%# ] 94%# ] 94%# ] 94%# ] 94%# ] 94%# ] 94%# ] 94%95%96%# ] 96%# ] 96%# ] 96%# ] 96%# ] 96%# ] 96%# ] 96%# ] 96%# ] 96%# ] 96%97%98%# ] 98%# ] 98%# ] 98%# ] 98%# ] 98%# ] 98%# ] 98%# ] 98%# ] 98%# ] 98%99%100%#] 100%
# Took 9.161 seconds

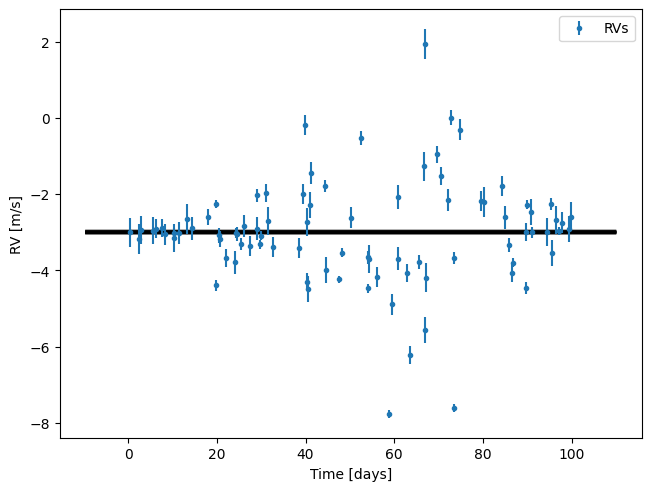

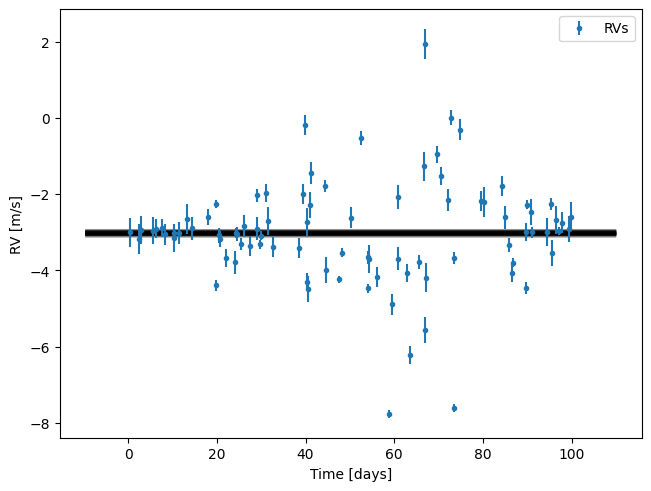

and load the results
Loading files took 0.03 seconds
log(Z) = -158.17
Information = 5.07 nats
BMD = 2.13
Effective sample size = 264.4

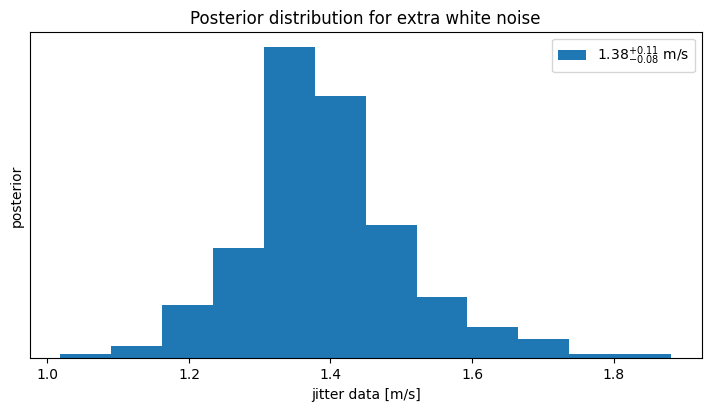

[<Axes: title={'center': 'Posterior distribution for extra white noise'}>]
Jitter proportional to \(\log R'_{HK}\)¶
Now we run a model where the jitter is proportional to the \(\log R'_{HK}\) values.
data2 = RVData('data.txt', indicators=['rhk', 'err_rhk']) #(1)!
model2 = RVmodel(fix=True, npmax=0, data=data2)
model2.jitter_propto_indicator = True #(2)!
- the RVs are the same, but also read rhk and uncertainty
- this adds the new parameter \(\alpha_j\) and assigns a default prior
# Seeding random number generators. First seed = 1777457765.
# Generating 4 particles from the prior...done.
# Sampling...
[ ] 0% ] 0% ] 0% ] 0% ] 0% ] 0% ] 0% ] 0% ] 0% ] 0% ] 0%1%2%# ] 2%# ] 2%# ] 2%# ] 2%# ] 2%# ] 2%# ] 2%# ] 2%# ] 2%# ] 2%3%4%# ] 4%# ] 4%# ] 4%# ] 4%# ] 4%# ] 4%# ] 4%# ] 4%# ] 4%# ] 4%5%6%# ] 6%# ] 6%# ] 6%# ] 6%# ] 6%# ] 6%# ] 6%# ] 6%# ] 6%# ] 6%7%8%# ] 8%# ] 8%# ] 8%# ] 8%# ] 8%# ] 8%# ] 8%# ] 8%# ] 8%# ] 8%9%10%# ] 10%# ] 10%# ] 10%# ] 10%# ] 10%# ] 10%# ] 10%# ] 10%# ] 10%# ] 10%11%12%# ] 12%# ] 12%# ] 12%# ] 12%# ] 12%# ] 12%# ] 12%# ] 12%# ] 12%# ] 12%13%14%# ] 14%# ] 14%# ] 14%# ] 14%# ] 14%# ] 14%# ] 14%# ] 14%# ] 14%# ] 14%15%16%# ] 16%# ] 16%# ] 16%# ] 16%# ] 16%# ] 16%# ] 16%# ] 16%# ] 16%# ] 16%17%18%# ] 18%# ] 18%# ] 18%# ] 18%# ] 18%# ] 18%# ] 18%# ] 18%# ] 18%# ] 18%19%20%# ] 20%# ] 20%# ] 20%# ] 20%# ] 20%# ] 20%# ] 20%# ] 20%# ] 20%# ] 20%21%22%# ] 22%# ] 22%# ] 22%# ] 22%# ] 22%# ] 22%# ] 22%# ] 22%# ] 22%# ] 22%23%24%# ] 24%# ] 24%# ] 24%# ] 24%# ] 24%# ] 24%# ] 24%# ] 24%# ] 24%# ] 24%25%26%# ] 26%# ] 26%# ] 26%# ] 26%# ] 26%# ] 26%# ] 26%# ] 26%# ] 26%# ] 26%27%28%# ] 28%# ] 28%# ] 28%# ] 28%# ] 28%# ] 28%# ] 28%# ] 28%# ] 28%# ] 28%29%30%# ] 30%# ] 30%# ] 30%# ] 30%# ] 30%# ] 30%# ] 30%# ] 30%# ] 30%# ] 30%31%32%# ] 32%# ] 32%# ] 32%# ] 32%# ] 32%# ] 32%# ] 32%# ] 32%# ] 32%# ] 32%33%34%# ] 34%# ] 34%# ] 34%# ] 34%# ] 34%# ] 34%# ] 34%# ] 34%# ] 34%# ] 34%35%36%# ] 36%# ] 36%# ] 36%# ] 36%# ] 36%# ] 36%# ] 36%# ] 36%# ] 36%# ] 36%37%38%# ] 38%# ] 38%# ] 38%# ] 38%# ] 38%# ] 38%# ] 38%# ] 38%# ] 38%# ] 38%39%40%# ] 40%# ] 40%# ] 40%# ] 40%# ] 40%# ] 40%# ] 40%# ] 40%# ] 40%# ] 40%41%42%# ] 42%# ] 42%# ] 42%# ] 42%# ] 42%# ] 42%# ] 42%# ] 42%# ] 42%# ] 42%43%44%# ] 44%# ] 44%# ] 44%# ] 44%# ] 44%# ] 44%# ] 44%# ] 44%# ] 44%# ] 44%45%46%# ] 46%# ] 46%# ] 46%# ] 46%# ] 46%# ] 46%# ] 46%# ] 46%# ] 46%# ] 46%47%48%# ] 48%# ] 48%# ] 48%# ] 48%# ] 48%# ] 48%# ] 48%# ] 48%# ] 48%# ] 48%49%50%# ] 50%# ] 50%# ] 50%# ] 50%# ] 50%# ] 50%# ] 50%# ] 50%# ] 50%# ] 50%51%52%# ] 52%# ] 52%# ] 52%# ] 52%# ] 52%# ] 52%# ] 52%# ] 52%# ] 52%# ] 52%53%54%# ] 54%# ] 54%# ] 54%# ] 54%# ] 54%# ] 54%# ] 54%# ] 54%# ] 54%# ] 54%55%56%# ] 56%# ] 56%# ] 56%# ] 56%# ] 56%# ] 56%# ] 56%# ] 56%# ] 56%# ] 56%57%58%# ] 58%# ] 58%# ] 58%# ] 58%# ] 58%# ] 58%# ] 58%# ] 58%# ] 58%# ] 58%59%60%# ] 60%# ] 60%# ] 60%# ] 60%# ] 60%# ] 60%# ] 60%# ] 60%# ] 60%# ] 60%61%62%# ] 62%# ] 62%# ] 62%# ] 62%# ] 62%# ] 62%# ] 62%# ] 62%# ] 62%# ] 62%63%64%# ] 64%# ] 64%# ] 64%# ] 64%# ] 64%# ] 64%# ] 64%# ] 64%# ] 64%# ] 64%65%66%# ] 66%# ] 66%# ] 66%# ] 66%# ] 66%# ] 66%# ] 66%# ] 66%# ] 66%# ] 66%67%68%# ] 68%# ] 68%# ] 68%# ] 68%# ] 68%# ] 68%# ] 68%# ] 68%# ] 68%# ] 68%69%70%# ] 70%# ] 70%# ] 70%# ] 70%# ] 70%# ] 70%# ] 70%# ] 70%# ] 70%# ] 70%71%72%# ] 72%# ] 72%# ] 72%# ] 72%# ] 72%# ] 72%# ] 72%# ] 72%# ] 72%# ] 72%73%74%# ] 74%# ] 74%# ] 74%# ] 74%# ] 74%# ] 74%# ] 74%# ] 74%# ] 74%# ] 74%75%76%# ] 76%# ] 76%# ] 76%# ] 76%# ] 76%# ] 76%# ] 76%# ] 76%# ] 76%# ] 76%77%78%# ] 78%# ] 78%# ] 78%# ] 78%# ] 78%# ] 78%# ] 78%# ] 78%# ] 78%# ] 78%79%80%# ] 80%# ] 80%# ] 80%# ] 80%# ] 80%# ] 80%# ] 80%# ] 80%# ] 80%# ] 80%81%82%# ] 82%# ] 82%# ] 82%# ] 82%# ] 82%# ] 82%# ] 82%# ] 82%# ] 82%# ] 82%83%84%# ] 84%# ] 84%# ] 84%# ] 84%# ] 84%# ] 84%# ] 84%# ] 84%# ] 84%# ] 84%85%86%# ] 86%# ] 86%# ] 86%# ] 86%# ] 86%# ] 86%# ] 86%# ] 86%# ] 86%# ] 86%87%88%# ] 88%# ] 88%# ] 88%# ] 88%# ] 88%# ] 88%# ] 88%# ] 88%# ] 88%# ] 88%89%90%# ] 90%# ] 90%# ] 90%# ] 90%# ] 90%# ] 90%# ] 90%# ] 90%# ] 90%# ] 90%91%92%# ] 92%# ] 92%# ] 92%# ] 92%# ] 92%# ] 92%# ] 92%# ] 92%# ] 92%# ] 92%93%94%# ] 94%# ] 94%# ] 94%# ] 94%# ] 94%# ] 94%# ] 94%# ] 94%# ] 94%# ] 94%95%96%# ] 96%# ] 96%# ] 96%# ] 96%# ] 96%# ] 96%# ] 96%# ] 96%# ] 96%# ] 96%97%98%# ] 98%# ] 98%# ] 98%# ] 98%# ] 98%# ] 98%# ] 98%# ] 98%# ] 98%# ] 98%99%100%#] 100%
# Took 16.608 seconds
Loading files took 0.03 seconds
log(Z) = -125.78
Information = 9.10 nats
BMD = 2.84
Effective sample size = 271.6

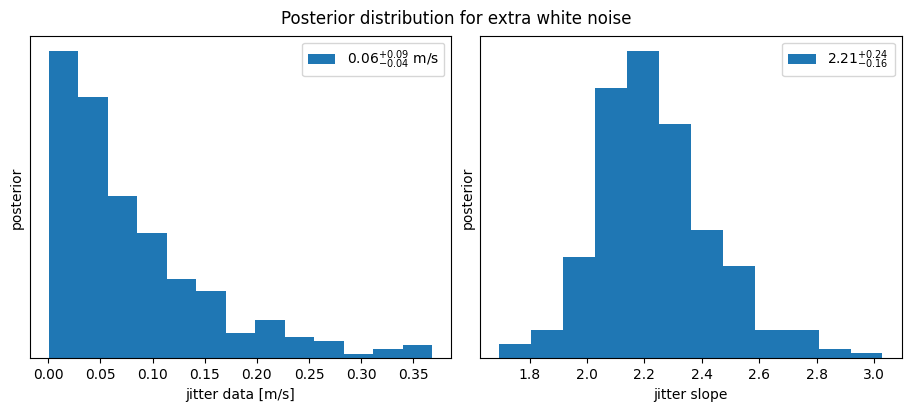

[<Axes: > <Axes: >]
Doing model comparison it looks like the second model is indeed a much better description of the data:
lnZ model 1: -158.2
lnZ model 2: -125.8
HARPS data for HD40307¶
